오메탈(O-Metal)
The O-Metal designed a mirror effect functional coating solution by applying our proprietary metal precursor synthesis and coating technology
Excellent particle size uniformity and visible light gloss
High NIR blocking ability (cut off 800 ~ 2500nm) and strong durability
Excellent reducibility with low temperature pixel system applied (ex. Chamber temp 130°C, about 1 minute, Barcoat No. 4, 25um PET substrate)
O-Metal may have the appearance of a metal sputtered film. (ex. interior decoration film etc)
Product
-

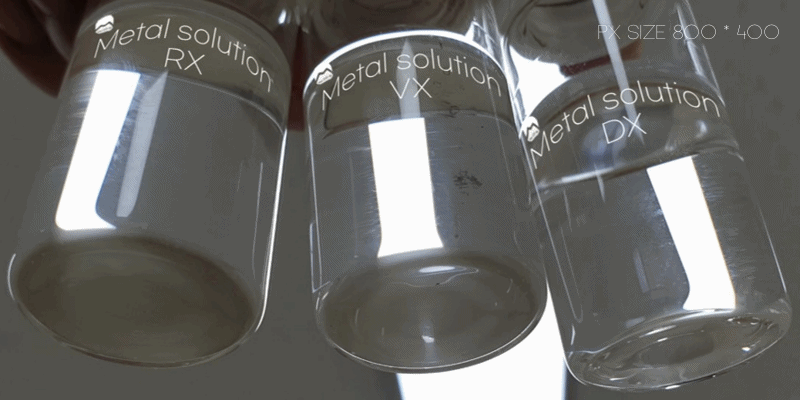

Contains metal ions in a transparent liquid.
O-Metal are metal coating solutions that combine metal ions and the reducing system, the technology of The CO-M.
-

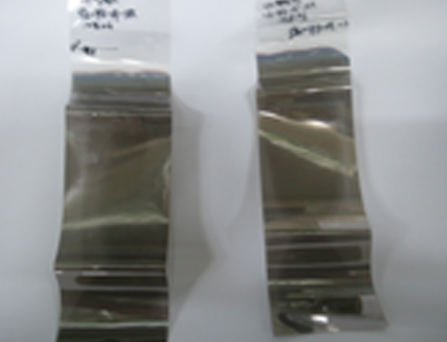

No change after 1000 hours of QUV

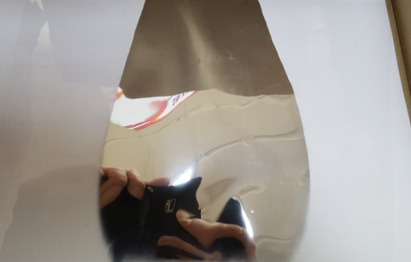

The mirror film coated with metal solution VX
on PET has excellent durability
Applications
-
-

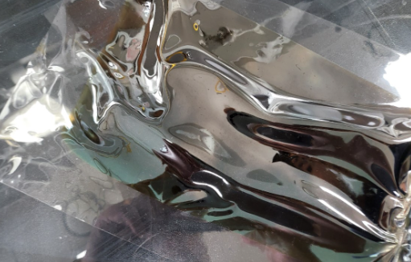

Coating on TPU substrate
-
-
-
Coating on PET substrate
-
-
-
Silver motion simulation image
-
Analysis result
-
-

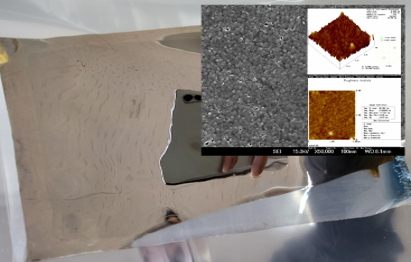

Image of SPM coated on PET
-
-
-

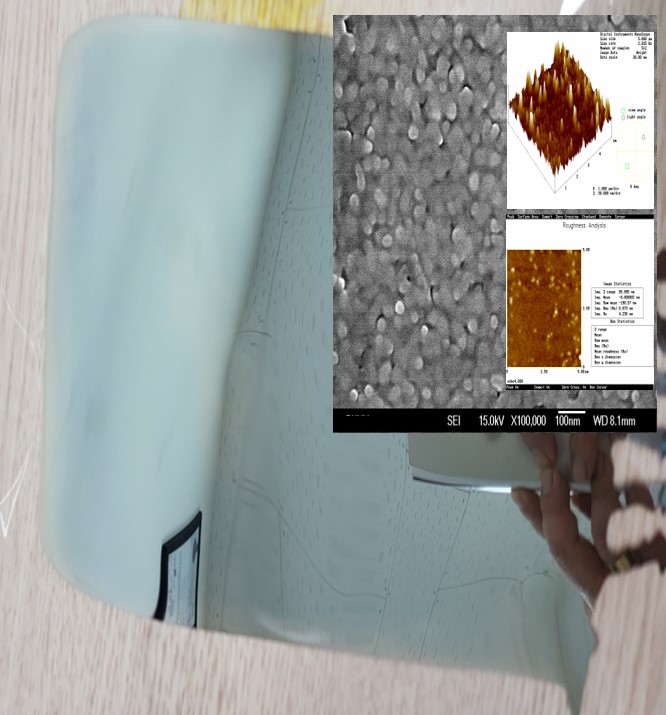

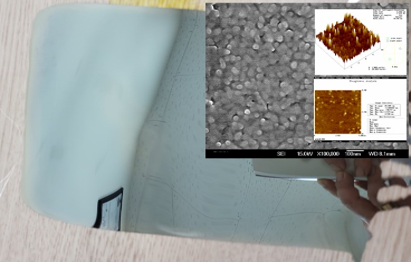

Image of SPM coated on TPU
-
-
-

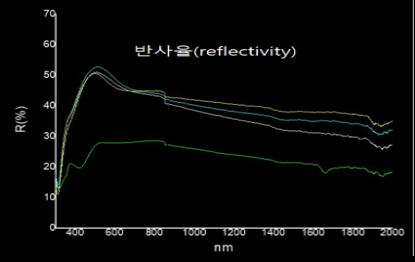

Silver Coated Film Reflectance
-
O-Metal Specification (metal solution)
Appearance |
Clear |
|---|---|
Particle size |
- |
Solid contents |
1.54~6.4 wt.% |
Viscosity |
10~20 cps |
Base solvent |
Alcohol or solvent |
Customization possible after ordering consultation
O-Metal coating sol (RX, VX, DX) products are available to order
